LVS-9510 Barcode Verifier

Barcode Verification of 1D and 2D Barcodes to ISO/ANSI/GS1 Standards

LVS-9510 Barcode Verifier

The LVS-9510 barcode verifier is able to grade the quality and validate the data within all 1D and 2D barcode symbologies.

Built to ISO 15426 standards, the LVS-9510 verifies barcodes to ISO 15415 and ISO 15416 standards and validates the data and barcode structure to all industry application standards including GS1, HIBC, MailMark and many more.

Available in four sizes with fields of view of up to 159mm wide, the high resolution 5mp pixel integrated camera allows the verification of very small codes down to an X dimension of 4.0mils (0.10mm) for 1D barcodes and 5.9mils (0.15mm) for 2D codes.

The 9510 software is extremely simple and intuitive to use and is able to auto-discriminate the symbology, narrow bar width and aperture to be used and is 21 CFR Part 11 compliant ready so ideal for use in the pharmaceutical industry.

For more information on barcode standards, follow this link to the GS1 Website.

To learn more about the importance of barcode verification follow this link.

  • The LVS-9510 provides full ISO/ANSI barcode verification of 1D and 2D codes.
  • All nine ISO/ANSI parameters are verified plus added features of determining blemishes, opacity, and human readable validation.
  • Analysis is colour coded to show exactly where a problem is located within the barcode and sections of the code can be analysed to determine how to overcome it.
  • High-resolution inspection of the barcode analyses every 0.05mm of the barcode height which exceeds the minimum ten scan average required by ISO standards.

the lvs-9510 barcode verifier grades all 1D and 2D barcodes to ISO and GS1 standards

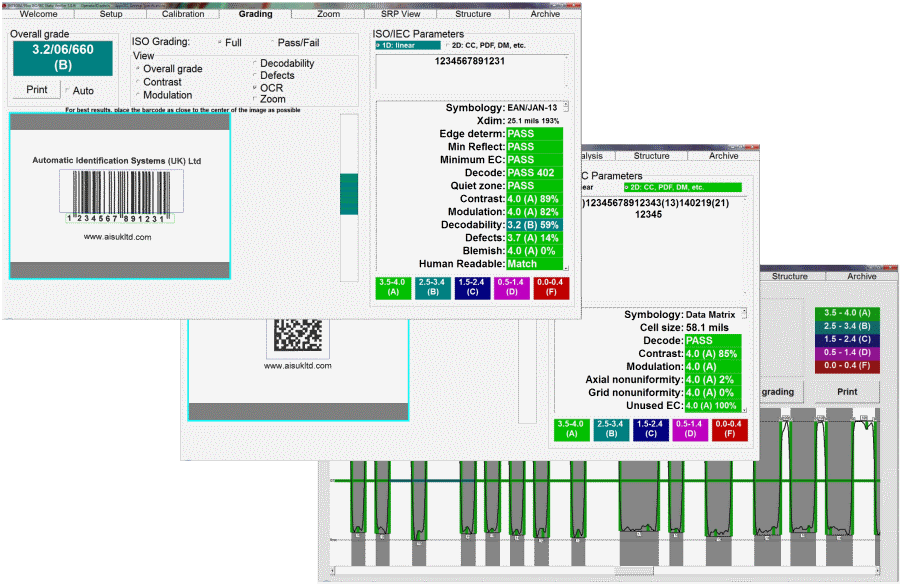

barcode grading software

  • All 1D and 2D barcode application standards are supported including ISO 15415, ISO 15416, GS1 General Specifications, Mailmark, HIBC, MIL-STD-130N, French CIP, AIG/ODETTE and many more.
  • Accuracy and repeatability are paramount in barcode verification. The operator is not involved in the scanning process with no wand to hold, no angle to maintain and no buttons to press.
  • The LVS-9510 is the most reliable system on the market. There are no moving parts to wear and no laser diode to burn out.
  • Every system is supplied with a NIST traceable conformance standard test card provided by GS1 to ensure that it is always within a known calibration standard.

Application Standards

  • AIAG/DAMA/JAPIA/Odette
  • ALDI
  • AS9132-A /AIM DPM Cat 0
  • DHL
  • GS1 General Specifications
  • IFAH
  • ISO/IEC 15415/15416
  • Italian Pharmacode
  • Japan Codabar
  • Laetus Miniature Pharmacode
  • Laetus Pharmacode
  • Laetus Standard
  • MIL-STD-130M
  • PZN (big, normal, small)
  • ISO Conformance Standards
  • ISO/IEC 15415:2004(E)
  • ISO/IEC 15416:2000(E)
  • ISO/IEC 15426-1:2000(E)
  • ISO/IEC 15426-2:2004(E)
  • GS1 US CERTIFICATION
  • Data Matrix for Healthcare
  • Data Matrix (ECC 200)
  • EAN/UPC
  • EAN/UPC and extended codes
  • EAN/UPC with CC
  • GS1 DataBar Omnidirectional
  • ITF-14
  • GS1 Databar-14 with CC (formerly RSS-14 with CC)
  • UCC/EAN with Supplementals
  • UCC/EAN-128
  • UCC/EAN-128 with CC

Supported Symbologies

  • Aztec Code
  • Composite Code CC-A
  • Composite Code CC-B
  • Composite Code CC-C
  • Codabar
  • Code 128
  • Code 39
  • Code 93
  • DatBar Expanded
  • DataBar Limited
  • DataBar Stacked
  • DataBar-14
  • EAN/JAN-13
  • EAN/JAN-8
  • ECC-200 (Datamatrix)
  • GS1-128
  • Hanxin Code
  • Interleaved 2 of 5 (ITF)
  • ITF-14
  • Japan Post
  • MaxiCode
  • Micro QR Code
  • Micro PDF417
  • Pharmacode – Italian
  • Pharmacode – Laetus
  • Postal (IMB, Japan Post, Mailmark, PostNet)
  • QR Code
  • UPC-A
  • UPC-E
  • USPS Intelligent Mail (4 State) Barcode
