LVS-9580 Barcode Verifier

Barcode Verification of 1D and 2D Barcodes to ISO/ANSI/GS1 Standards

Ideal for Wide Web Applications

LVS-9580 Barcode Verifier

The LVS-9580 barcode verifier from Microscan is the latest handheld verifier offering full ISO/ANSI/GS1 barcode verification.

The 9580 is unique in being available as a cost effective linear 1D barcode verifier or as a combination 1D/2D verifier able to grade all one and two dimensional barcode symbologies. Both models feature the same 5mp camera with the 1D version being upgradable to 1D/2D through a simple software activation providing a unique future proof solution.

The LVS-9580 software is extremely simple and intuitive to use and is able to auto-discriminate the symbology, narrow bar width and aperture to be used and is 21 CFR Part 11 compliant ready so ideal for use in the pharmaceutical industry.

For more information on barcode standards, follow this link to the GS1 Website.

To learn more about the importance of barcode verification follow this link.

  • The LVS-9580 provides full ISO/ANSI barcode verification of 1D and 2D barcodes.
  • Available as a cost effective 1D only verifier or as a fully featured 1D/2D verifier. In addition, the 1D model is upgradable to 1D/2D with a simple software activation.
  • The handheld design and live image display makes the 9580 extremely easy to use and ideal for wide web print application.
  • All nine ISO/ANSI parameters are verified plus added features of determining blemishes, opacity, and human readable validation.

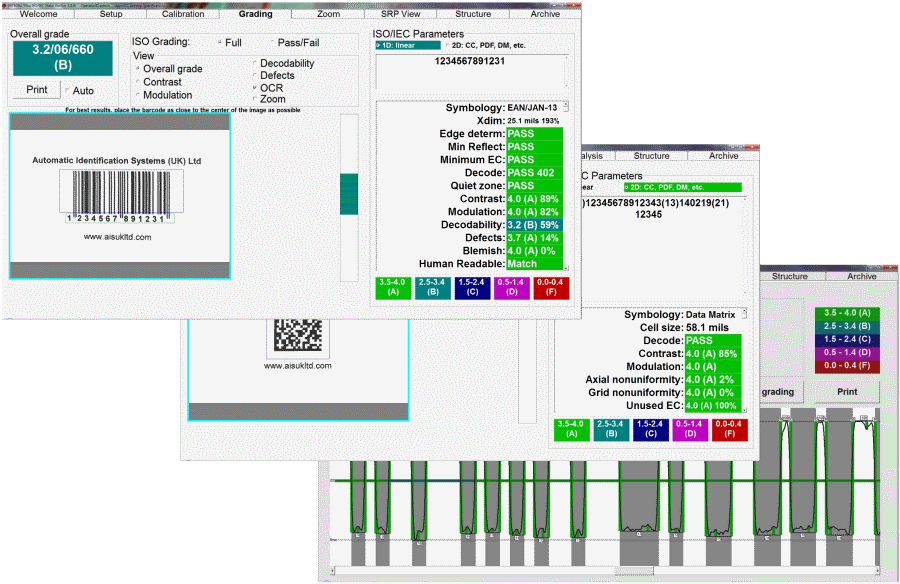

  • Analysis is colour coded to show exactly where problems are located within the barcode and sections of the code can be analysed to determine how to overcome them.

grade barcode quality with the lvs 9580 barcode verifier

barcode quality analysis software

  • All 1D and 2D barcode application standards are supported including ISO 15415, ISO 15416, GS1 General Specifications, Mailmark, HIBC, MIL-STD-130N, French CIP, AIG/ODETTE and many more.
  • High-resolution inspection of the barcode analyses every 0.05mm of the barcode height which exceeds the minimum ten scan average required by ISO standards.
  • The LVS-9580 is the most reliable system on the market. There are no moving parts to wear and no laser diode to burn out.
  • Every system is supplied with a NIST traceable conformance standard test card provided by GS1 to ensure that it is always within a known calibration standard.

Application Standards

  • ALDI
  • AS9132-A /AIM DPM Cat 0
  • DHL
  • GS1 General Specifications
  • IFAH
  • ISO/IEC 15415/15416
  • Italian Pharmacode
  • Japan Codabar
  • Laetus Miniature Pharmacode
  • Laetus Pharmacode
  • Laetus Standard
  • MIL-STD-130M
  • PZN (big, normal, small)
  • ISO Conformance Standards
  • ISO/IEC 15415:2004(E)
  • ISO/IEC 15416:2000(E)
  • ISO/IEC 15426-1:2000(E)
  • ISO/IEC 15426-2:2004(E)
  • Data Matrix for Healthcare
  • Data Matrix (ECC 200)
  • EAN/UPC and extended codes
  • EAN/UPC with CC
  • GS1 DataBar Omnidirectional
  • ITF-14
  • GS1 Databar-14 with CC (formerly RSS-14 with CC)
  • UCC/EAN with Supplementals
  • UCC/EAN-128
  • UCC/EAN-128 with CC

Supported Symbologies

  • Aztec Code
  • Composite Code CC-A
  • Composite Code CC-B
  • Composite Code CC-C
  • Codabar
  • Code 128
  • Code 39
  • Code 93
  • DatBar Expanded
  • DataBar Limited
  • DataBar Stacked
  • DataBar-14
  • EAN/JAN-13
  • EAN/JAN-8
  • ECC-200 (Datamatrix)
  • GS1-128
  • Hanxin Code
  • Interleaved 2 of 5 (ITF)
  • ITF-14
  • Japan Post
  • MaxiCode
  • Micro QR Code
  • Micro PDF417
  • Pharmacode – Italian
  • Pharmacode – Laetus
  • Postal (IMB, Japan Post, Mailmark, PostNet)
  • QR Code
  • UPC-A
  • UPC-E
  • USPS Intelligent Mail (4 State) Barcode
